BGA CSP JEDEC IC Tray with V-Groove Protection, High Precision Cavity, and ESD-Safe MPPO Material

BGA CSP JEDEC IC Tray with V-Groove Protection, High Precision Cavity, and ESD-Safe MPPO Material

Nazwa marki: Hiner-pack
Numer modelu: HN24234
MOQ: 500 SZT
Cena £: $1.35~$2.38(Prices Are Determined According To Different Incoterms And Quantities)
Warunki płatności: T/T
Zdolność do zaopatrzenia: 2000 sztuk/dzień
Szczegółowe informacje
Miejsce pochodzenia:
Chiny
Orzecznictwo:
ROHS, ISO
Waga tacy:
Różnie, zazwyczaj do 500 gramów na wnękę
Kolor:
Zwykle czarny lub ciemnoszary dla ochrony ESD
Zapewnienie jakości:
Gwarancja dostawy, niezawodna jakość
Rozmiar jamy:
17x10,5x5,17 mm
Formuły handlowe:
Exw, FOB, CIF, DDU, DDP
Typ pleśni:
Zastrzyk
Wielokrotnego użytku:
Tak
Kształt tacy:
Prostokątny
Czysta klasa:
Czyszczenie ogólne i ultradźwiękowe
Typ Ic:
BGA, QFP, QFN, LGA, PGA
Poziom pakowania:
Pakiet Transportowy
Płaskość:
Mniej niż 0,76 mm
Pojemność:
8x13=104 szt
Szczegóły pakowania:
karton, paleta
Możliwość Supply:
2000 sztuk/dzień
Podkreślić:

BGA JEDEC tray with V groove

,

CSP IC tray for precision protection

,

JEDEC IC tray with V groove

Opis produktu

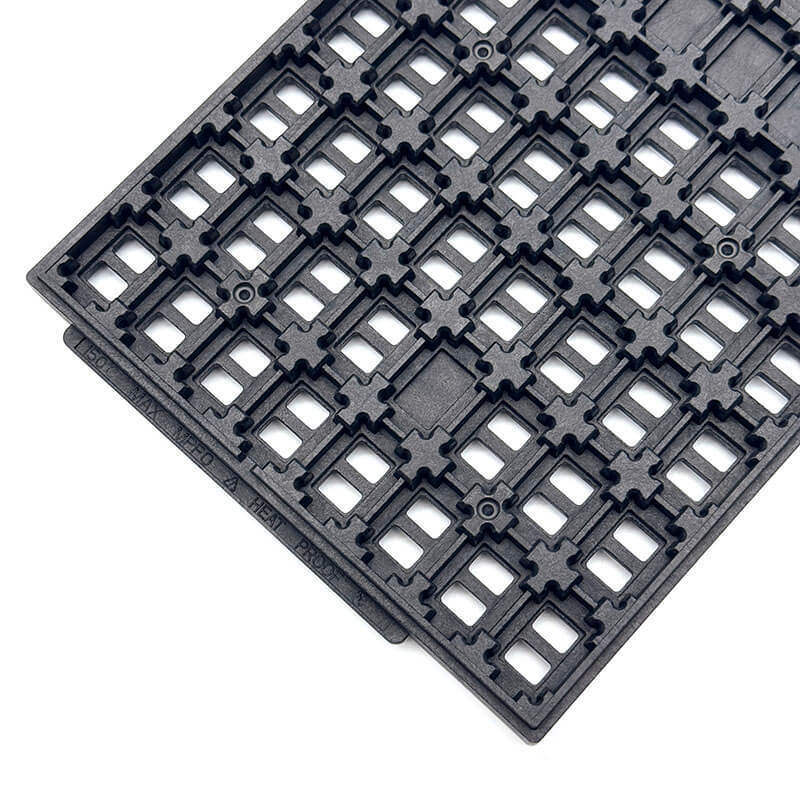

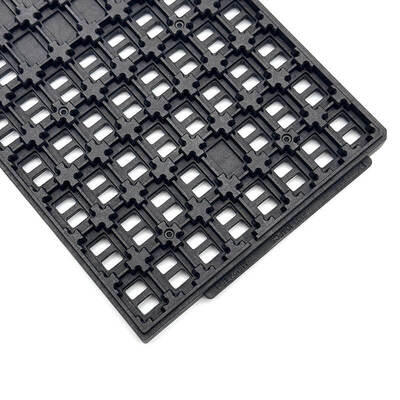

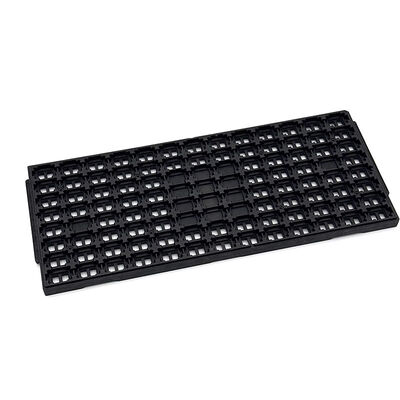

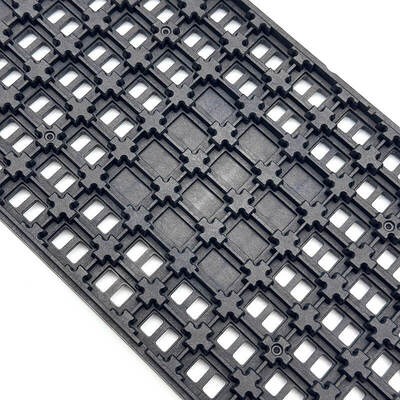

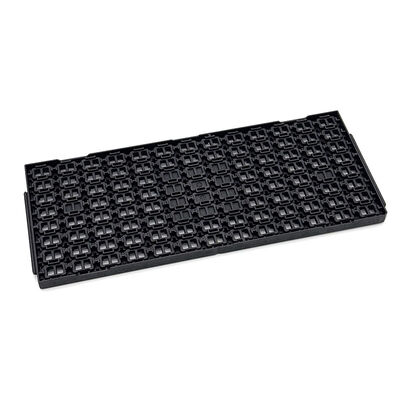

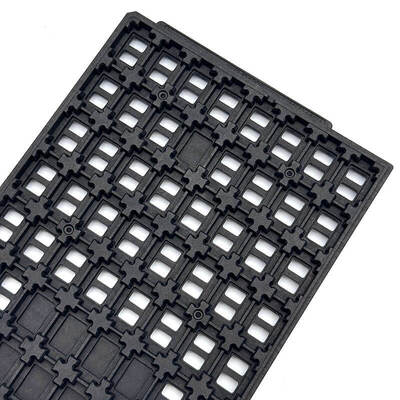

BGA CSP JEDEC Tray with V Groove for Precision IC Protection
Designed for high-level semiconductor cleanroom environments, this tray minimizes contamination and ensures IC integrity.
Key Features/ Benefits
  • V-groove protection design
  • Reduced chip damage
  • Suitable for fine pitch IC
  • High precision cavity
Specifications
Brand Hiner-pack
Model  HN24234
Material  MPPO
Package Type JEDEC
Color Black
Resistance 1.0×10⁴ - 1.0×10¹¹ Ω
Outline Line Size 322.6×135.9×12.19 mm
Cavity Size 17x10.5x5.17 mm
Matrix QTY 8x13=104 PCS
Warpage MAX 0.76mm
Service Accept OEM, ODM
Custom Pocket Options Available
Applications
JEDEC trays are widely used for IC protection during manufacturing and transport, especially for ESD-sensitive devices
  • BGA
  • CSP
  • Fine pitch IC
Packaging & Shipping/ Services
JEDEC Matrix Trays are packaged in durable, anti-static materials with secure stacking and cushioning inserts. Customized packaging solutions are available upon request. All shipments are tracked and handled by trusted carriers for reliable worldwide delivery.
